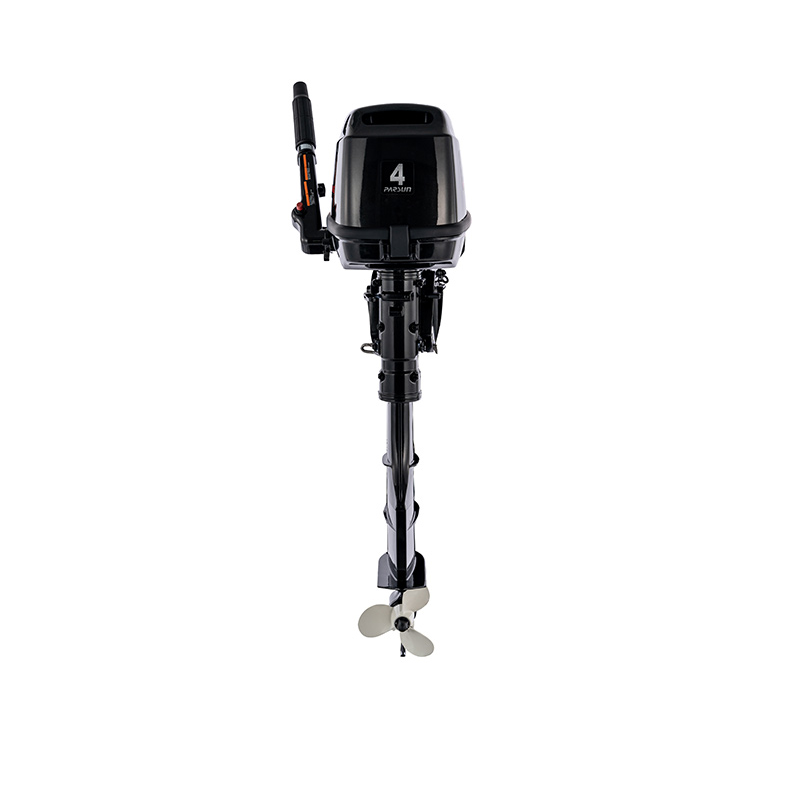

Parsun 4HP Outboard Engine

Description

Compact, portable and impressively economical, the Parsun F4 is the perfect 4-stroke outboard for dinghies, tenders, small inflatables and as an auxiliary engine for larger boats. Designed for easy handling and stress-free boating, this lightweight motor offers smooth performance, low emissions and excellent fuel efficiency.

The F4 features a reliable single-cylinder 4-stroke engine that starts easily and runs quietly, making it ideal for everyday use around marinas, anchorages or coastal cruising. Its compact size allows for effortless transport, storage and installation, while the integrated carrying handle further enhances portability.

Whether you’re powering a small tender ashore, exploring quiet bays or need a reliable backup engine, the Parsun F4 delivers dependable performance at an excellent value.

Available Variants:

• F4BMS – Short Shaft (Manual Start, Tiller Control)
  Ideal for most tenders and inflatable boats with standard transom height.

• F4BML – Long Shaft (Manual Start, Tiller Control)
  Designed for hulls requiring extra shaft length to reach optimum propeller depth.

Key Features:

• Lightweight and portable 4-stroke engine

• Quiet running with low vibration

• Excellent fuel efficiency

• Manual start with tiller control

• Easy transport with integrated carry handle

• Reliable and simple to maintain

• Available in short or long shaft versions



Model	F4
Specs Option	F4BMS/F4BML
Transom Height	15/20in.
Weight	24.5Kg/25.5Kg
Full Throttle Operating Range	4000～5000r/min
Maximum Putput	2.9kW（4HP）@4500r/min
Idling Speed(Neutral)	1500～1600 r/min
Engine Type	OHV
Displacement	112 cc
Bore*Stroke	59.0×41.5 mm (2.32×1.61in.)
Ignition System	TCI
Fuel Induction System	Carburetor
Control System	Tiller control
Start System	Manual start
Gear Positions	F-N-R
Gear Ratio	2.08
Trim And Tilt System	Manual control
Fuel Tank Capacity	built-in 1.3L
Max. Fuel Consumption	1.6L/h
Engine Oil Capacity	0.5L
Gear Oil Capacity	100cc
Propeller Potions	3-7″in
