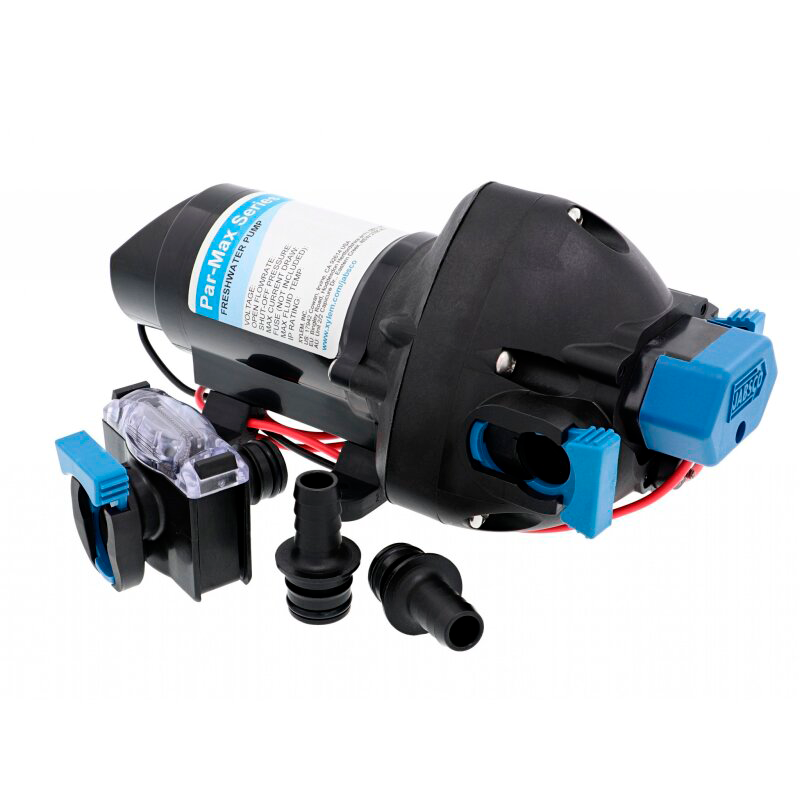

Jabsco PAR-MAX 3 Automatic Fresh Water Pressure Pump

Description

Automatic Fresh Water Supply for Boats

The Jabsco PAR-MAX 3 12V Fresh Water Pump provides pressurised water for onboard taps, sinks and showers.

With a maximum open-flow capacity of approximately 11 litres per minute and a 1.7 bar (25 PSI) shut-off pressure, it is suitable for small to medium-sized fresh water systems, typically serving up to three outlets.

The integrated pressure switch operates the pump automatically, while an internal bypass helps maintain smoother water flow and reduce frequent switching.

Key Features

• 12V DC operation for marine electrical systems

• Maximum open flow of approximately 11 L/min (3 GPM)

• Automatic pressure switch

• 1.7 bar (25 PSI) shut-off pressure

• Self-priming diaphragm design

• Three-chamber diaphragm pump

• Internal bypass for smoother flow

• Can tolerate occasional dry running

• Thermal motor protection

• Vibration-dampening mounting feet

• Quick-connect hose fittings for easier installation and servicing

Typical Applications

• Sailing yacht fresh water systems

• Motorboat fresh water systems

• Galley sinks

• Washbasins

• Onboard showers

• Replacement of compatible 12V pressure pumps

Installation Advice

Install the pump in a dry, accessible position with adequate ventilation around the motor.

Use suitable 13 mm fresh water hose and secure the connections correctly. Fit the supplied inlet strainer to help prevent debris from entering the pump.

Before replacing an existing pump, check the boat’s voltage, required flow rate, operating pressure, hose connections and available mounting space.

An accumulator tank can help further reduce pump cycling and pressure fluctuations, although the pump includes an internal bypass.
