Description

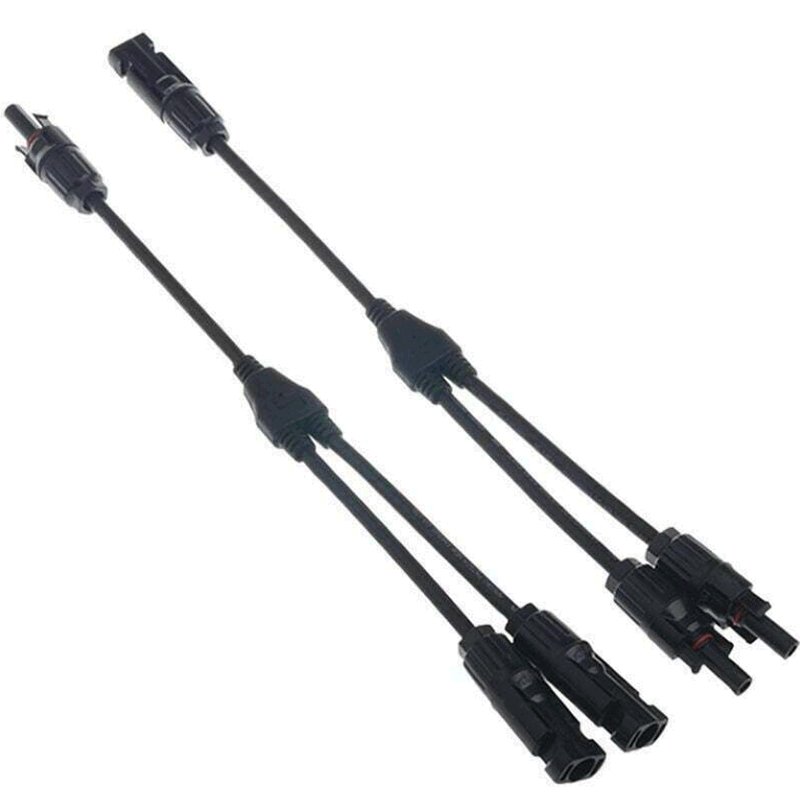

MC4 Y Connector
This solar connector is designed to connect photovoltaic solar systems under demanding mechanical conditions and in extreme climates. Its Y-shaped design allows for parallel connection, facilitating the integration of multiple solar panels.
Technical Specifications
Model: SA3 / SA5 (optional)
Material: PPO + tinned copper
Cable Length: 320 mm
Rated Voltage: 1000 V DC
Rated Current: 20 A (4 mm²), 30 A (6 mm²)
Contact Resistance: 2 m²
Insulation Resistance: 1 m² 500 m
Suitable for single-core cables with cross-sections of: 2.5 mm², 4 mm², 6 mm²
Cable Outer Diameter: ±5 mm ~ 7 mm
Operating Temperature: -40 °C ~ +105 °C
Immunity Class: UL94V-0
Waterproof Rating: IP67
Dimensions: 36 x 23 x 5 cm
Weight: 357 g
Compatibility and Accessories
Compatible with single-core cables with cross-sections of 2.5 mm² mm², 4 mm², and 6 mm².
Installation
The connector allows for quick and easy assembly and disassembly without the need for additional tools.
