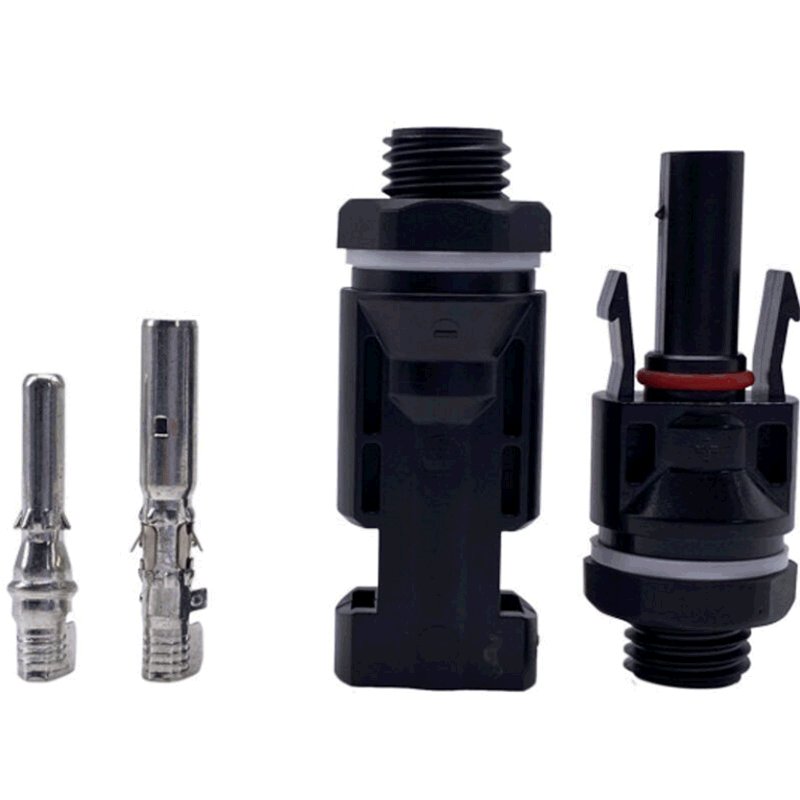

MC4 Connector
Solar panel connectors are essential components for installing photovoltaic systems. These male and female connectors offer broad compatibility with photovoltaic cables of various insulation diameters, as well as with small-diameter cables used in electrical lines. Their design includes features that ensure optimal performance under diverse environmental conditions.
Technical Specifications
Material: PPO, tinned copper
Gross weight: 16 g / 0.6 oz
Rated current: 30 A
Rated voltage: 1000 V DC
Contact resistance: 0.2 mΩ
Waterproof rating: IP67 (with enclosure)
Fire resistance rating: UL94 VO
Safety level: Class II
Tensile strength: 50 N
Insertion strength: 50 N
Connection system: Crimp connection
Temperature range: -40 °C ~ +90 °C
Compatibility and Accessories
Compatible with photovoltaic cables of various insulation diameters and small-diameter cables in electronic lines. Package includes:
1 male connector
1 female connector
2 terminals
Installation
Connecting the solar panel is done by pressing a button, simplifying the installation process. The male and female connectors have a self-locking structure that allows the connection to be opened and closed easily.
